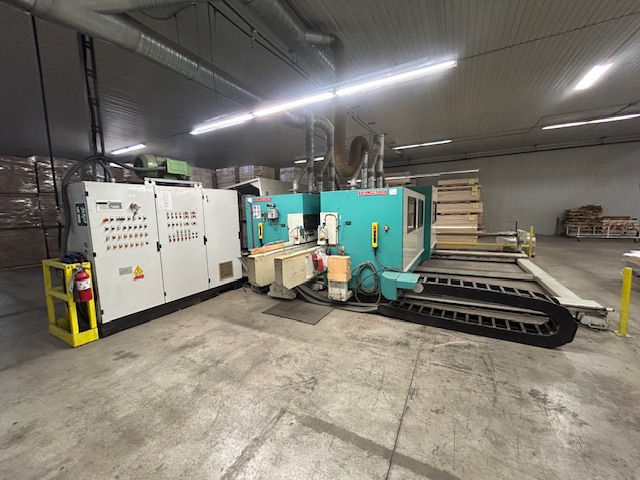

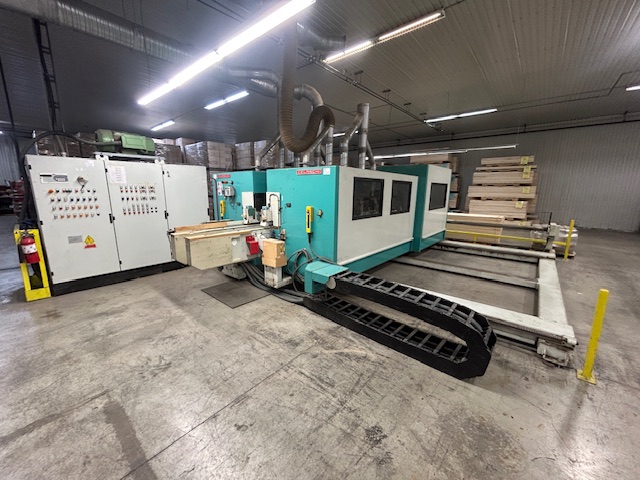

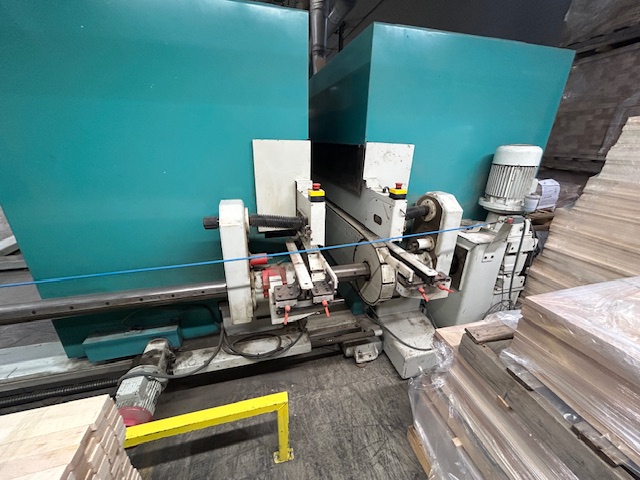

CELASCHI DOUBLE END TENONER 14 HEADS

Categories: ,

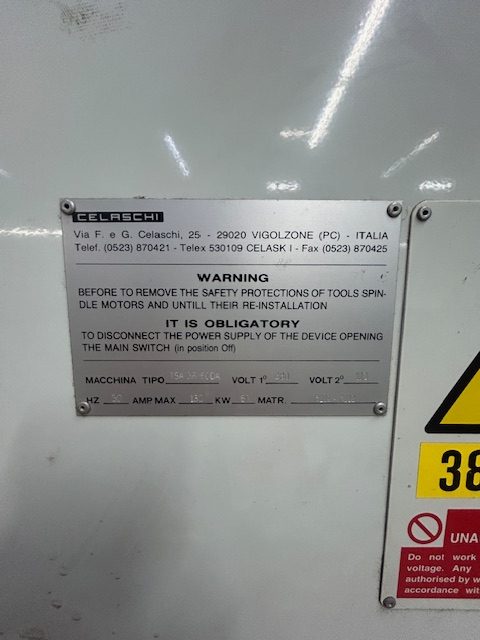

MODEL:TSA-3B-600A

SN:5111-5112

VOLTS:380/50 HZ/130 KW

YEAR:2001

118″ OPENNING READ OUT

SOUND ENCLOSURE

VARIABLE  SPEED DRIVE

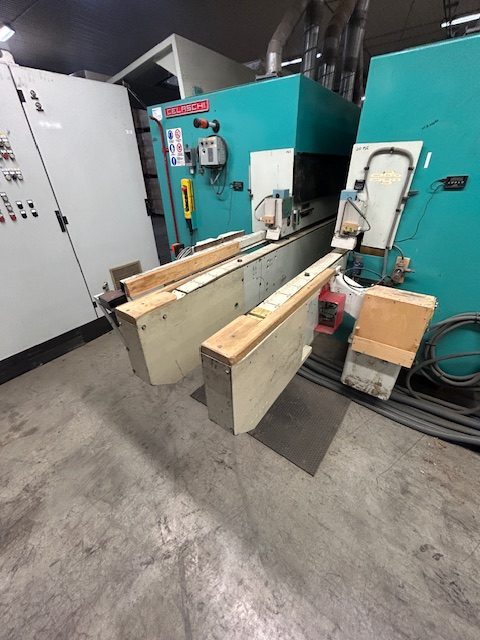

IN FEED CHAIN 44″

SUPERIOR BELT PRESSURE MOTORISE UP AND DOWN ELECTRIC

C.CENTRE DOG 24″

FREQUENCY CONVERTER

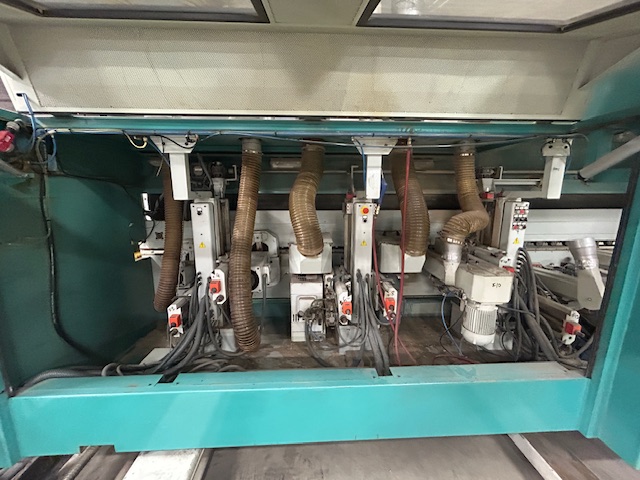

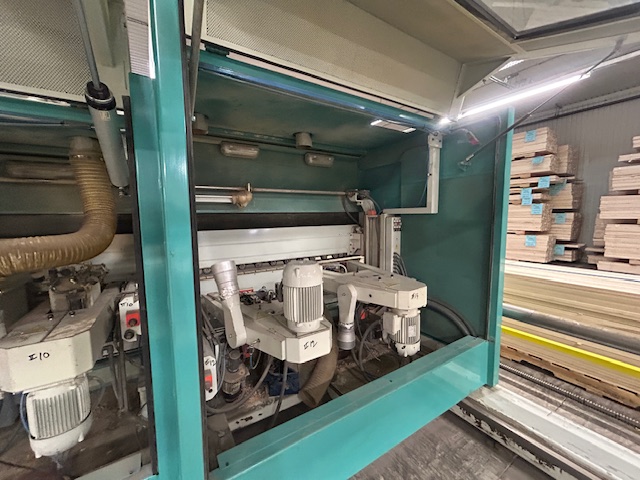

–CONFIGURATION–

1-SAW SCORING JUMP 2,2 KW/3,2 KW 3000/6000 RPM INCLINABLE

2-SAW  HOGGER 4/5,8KW 3000/6000 RPM

3-SHAPER JUMP 5,8 KW 3000/MINUTE

4-SHAPER 4/5,8KW 3000/6000 RPM INCLINABLE

5-SANDING  OSCILLATING BLOC DROIT HORIZONTAL

6-SANDING OSCILLATING  PROFILE 0 A 90 DEGRE

7-SANDING  OSSILLATING PROFILE 0 A 90 DEGRE
